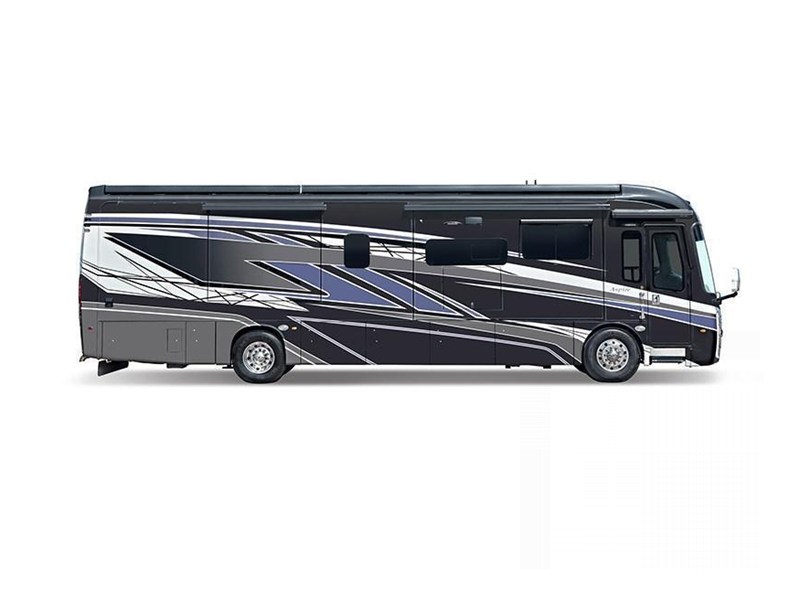

Entegra Coach Aspire Motor Home Class A - Diesel RVs For Sale

Previous
Next
1 of 20

You may be dreaming of your destination, but you'll love the journey just as much with an Aspire Class A diesel motorhome by Entegra Coach! This luxury coach is powered by a Cummins 450HP engine on a durable Spartan K2 chassis, and the E-Z Steer adjustable power steering assist provides an outstanding driving experience.



You will love the interior with its premium leather Crown Compass furniture, hand-laid porcelain tiled floors, and sleek stainless steel appliances. The 15" digital dash will make navigating the road easier than ever, and parking is a snap with the Ramco 360 degree HD digital camera system. These motorhomes are constructed with X-Bridge bracing welded into the chassis frame for added strength, and there are six custom full-body paint choices that are truly eye-catching.



It's easy to enjoy traveling and camping in an Aspire Class A diesel motorhome by Entegra Coach. Choose from six luxurious floorplans today!

  • Aspire 40P

    Aspire 40P Floorplan Image

    Take a Virtual Tour

    Entegra Coach Aspire Class A diesel motorhome 40P highlights: King Bed Slide Out ... more about Aspire 40P

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 40 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Shadow, Lily, Flagstone

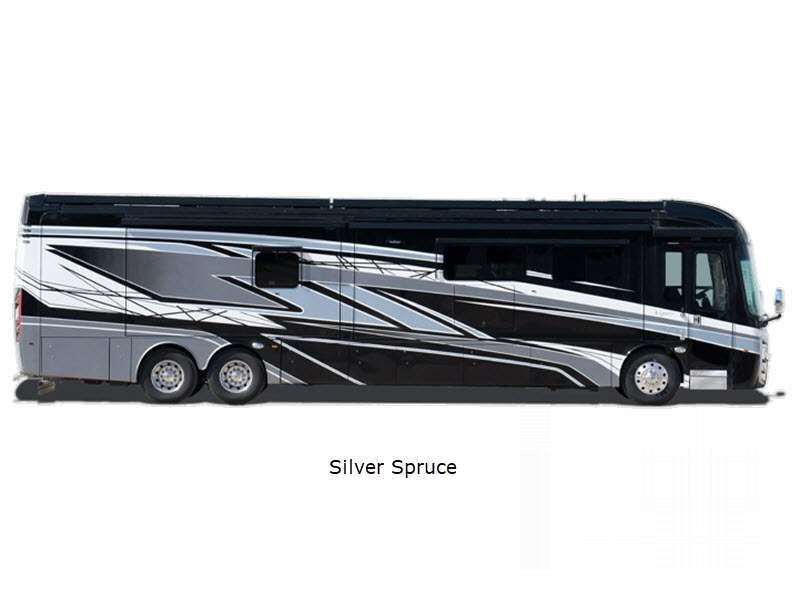

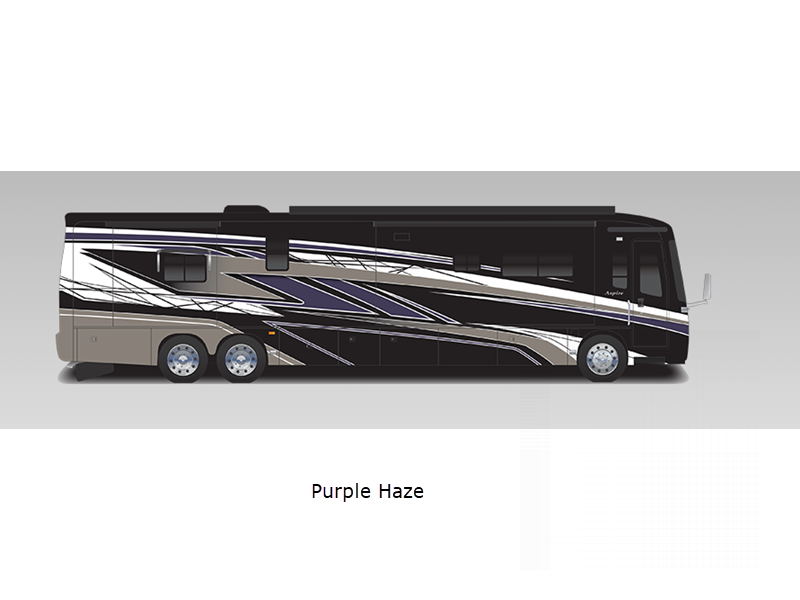

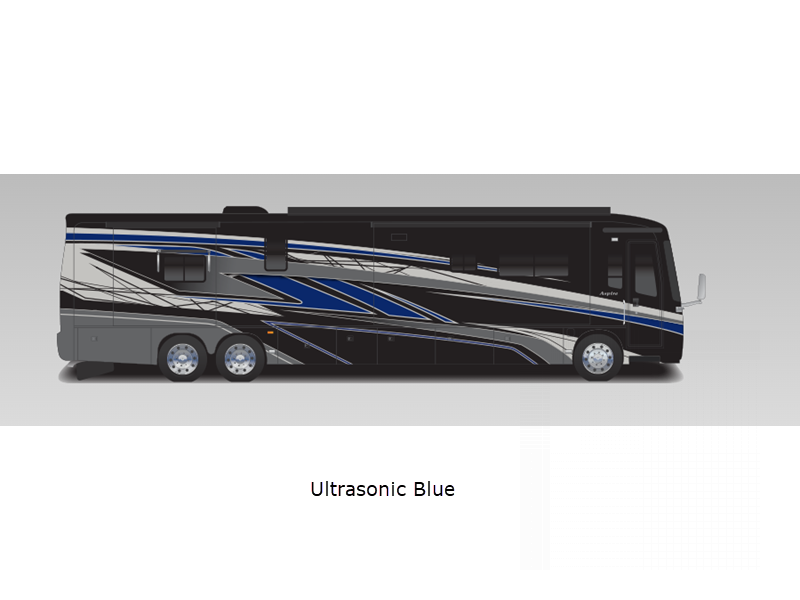

    Exterior Color Black Cherry, Gold Ice, Purple Haze, Silver Spruce, Ultrasonic Blue, Sugar Cookie
    Hitch Weight 10000 lbs
    Gross Weight 41000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Furnace BTU 65600 btu
    Generator Onan 10,000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Spartan K2 Raised-Rail
    Horsepower 450 hp
    Fuel Capacity 100 gals
    Wheelbase 261 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice Maker and Water DIspenser
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 2
    Axle Weight Front 17000 lbs
    Axle Weight Rear 24000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Ext. 43" 4K UHD Smart TV
    Awning Info Roof-Mounted Girard Vision Dual Pitch with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 51000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Aspire 44B

    Aspire 44B Floorplan Image

    Entegra Coach Aspire Class A diesel motorhome 44B highlights: Bath and a Half ... more about Aspire 44B

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Shadow, Lily, Flagstone
    Exterior Color Black Cherry, Gold Ice, Purple Haze, Silver Spruce, Ultrasonic Blue, Sugar Cookie
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Furnace BTU 65600 btu
    Generator Onan 10,000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Spartan K2 Raised-Rail
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice Maker and Water DIspenser
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 39"
    Number of Awnings 2
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Ext. 43" 4K UHD Smart TV
    Awning Info Roof-Mounted Girard Vision Dual Pitch with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Aspire 44D

    Aspire 44D Floorplan Image

    Entegra Coach Aspire Class A diesel motorhome 44D highlights: Hide-A-Bed Sofa ... more about Aspire 44D

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Shadow, Lily, Flagstone
    Exterior Color Black Cherry, Gold Ice, Purple Haze, Silver Spruce, Ultrasonic Blue, Sugar Cookie
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Furnace BTU 65600 btu
    Generator Onan 10,000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Spartan K2 Raised-Rail
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice Maker and Water DIspenser
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 40"
    Number of Awnings 2
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Ext. 43" 4K UHD Smart TV
    Awning Info Roof-Mounted Girard Vision Dual Pitch with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Aspire 44R

    Aspire 44R Floorplan Image

    Take a Virtual Tour

    Entegra Coach Aspire Class A diesel motorhome 44R highlights: Two Full Baths ... more about Aspire 44R

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Shadow, Lily, Flagstone
    Exterior Color Black Cherry, Gold Ice, Purple Haze, Silver Spruce, Ultrasonic Blue, Sugar Cookie
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Furnace BTU 65600 btu
    Generator Onan 10,000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Spartan K2 Raised-Rail
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Number Of Bunks 2
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice Maker and Water DIspenser
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 40"
    Number of Awnings 2
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Bunks (2) 24" TVs, Ext. 43" 4K UHD Smart TV
    Awning Info Roof-Mounted Girard Vision Dual Pitch with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Aspire 44W

    Aspire 44W Floorplan Image

    Take a Virtual Tour

    Entegra Coach Aspire Class A diesel motorhome 44W highlights: King Bed Slide Out ... more about Aspire 44W

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Shadow, Lily, Flagstone
    Exterior Color Black Cherry, Gold Ice, Purple Haze, Silver Spruce, Ultrasonic Blue, Sugar Cookie
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Furnace BTU 65600 btu
    Generator Onan 10,000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Spartan K2 Raised-Rail
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice Maker and Water DIspenser
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 2
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Ext. 43" 4K UHD Smart TV
    Awning Info Roof-Mounted Girard Vision Dual Pitch with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Aspire 44Z

    Aspire 44Z Floorplan Image

    Take a Virtual Tour

    Entegra Coach Aspire Class A diesel motorhome 44Z highlights: Four Slides ... more about Aspire 44Z

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 44 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 8 in
    Int Height 7 ft
    Interior Color Shadow, Lily, Flagstone
    Exterior Color Black Cherry, Gold Ice, Purple Haze, Silver Spruce, Ultrasonic Blue, Sugar Cookie
    Hitch Weight 15000 lbs
    Gross Weight 49000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 22.5"
    Furnace BTU 65600 btu
    Generator Onan 10,000 Watt Diesel
    Fuel Type Diesel
    Engine Cummins L9
    Chassis Spartan K2 Raised-Rail
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 320 in
    Available Beds King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice Maker and Water DIspenser
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 40"
    Number of Awnings 2
    Axle Weight Front 17000 lbs
    Axle Weight Rear 20000 lbs
    Axle Weight Tag 12000 lbs
    Water Heater Type Aqua Hot 400D
    AC BTU 45000 btu
    TV Info LR 50" 4K UHD Smart TV, Cab 32" LED Smart TV, BR 32" LED Smart TV, Ext. 43" 4K UHD Smart TV
    Awning Info Roof-Mounted Girard Vision Dual Pitch with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 64000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Aspire Features:

Standard Features (2023)



Chassis

  • Spartan® K2 raised-rail chassis
  • Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM
  • Allison® 3,000 MH 6-speed transmission
  • Side-mounted, parallel-airflow radiator
  • 170-amp alternator
  • 1,000-watt engine block heater
  • Three-stage engine brake
  • Independent front air suspension (IFS)
  • Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
  • Tag axle with air dump - 12,000 lb. rating (N/A 40P)
  • ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 40P)
  • 4.88 rear axle ratio (4.78 on 40P)
  • Michelin® X Coach Z 295/80R22.5 tires
  • Bilstein® 46mm shocks
  • Tire pressure monitoring system (TPMS) with temperature monitoring
  • Equalizer™ hydraulic automatic coach leveling
  • Remote air connection
  • (2) 12V chassis batteries
  • 150-gal. fuel tank with dual fills (100 gal. on 40P)
  • 15-gal. DEF tank with dual fills (single fill on 40P, 44R)
  • Spartan® Safehaul tow vehicle air brake system
  • 15,000-lb. hitch with 7-pin plug (10,000-lb. hitch on 40P)

Construction

  • 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass
  • 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
  • 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33)
  • X-Bridge™ bracing welded into chassis frame
  • Insulated front and rear caps (R-24)
  • Entegra-exclusive Relia-Torque flush-mounted 12V slideout system

Heat, AC, Water and Power

  • Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout
  • Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray
  • 3,000-watt pure sine wave inverter
  • (2) L16 AGM batteries (6V/390 amp hrs. ea.)
  • 50-amp power cord on electric powered reel
  • Smart automatic transfer switch with surge protection
  • (3) 15,000-BTU A/C units with heat pumps and condensation drain system
  • Aqua-Hot® heated basement storage
  • Sani-Con® Macerator holding tank dump system with manual gate valves and manual backup
  • Black holding tank sprayer
  • City and tank water filtration system
  • Water hose with electric reel

Exterior

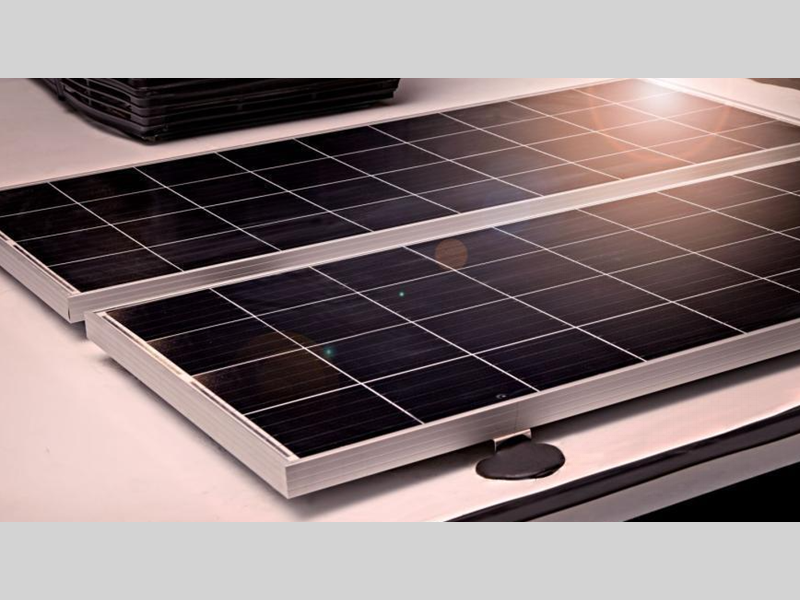

  • (2) 190W solar panels
  • Power rear engine door with manual override
  • Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
  • Girard® power entrance door awning with LED lights
  • Girard® Ultra slideout awnings
  • Girard® window awnings
  • Frameless, dual-pane, tinted, safety-glass windows
  • Lit grab handle with doorbell and keypad system for keyless entry

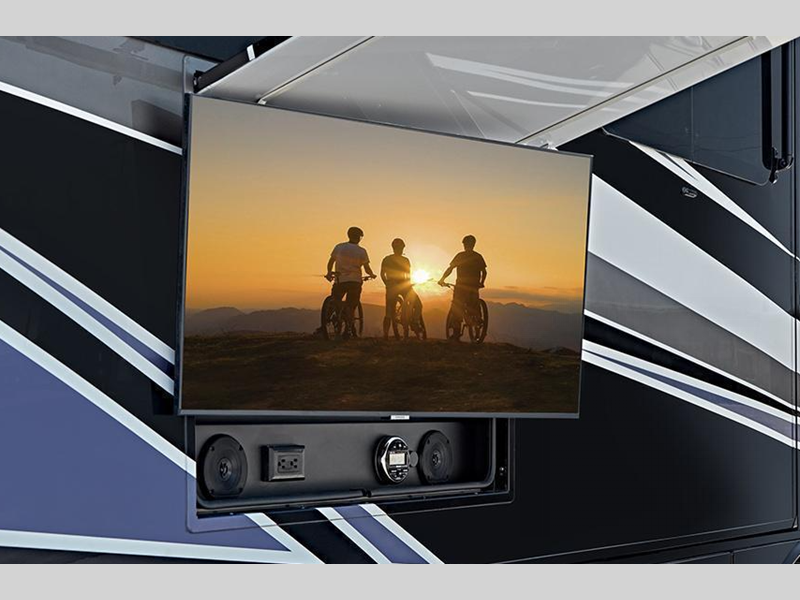

  • 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle
  • Chrome, heated, remote-control, side-view mirrors with two-position memory settings
  • Diamond Shield™ front protective film mask
  • Automatic LED low beam headlights, halogen high beam headlights and fog lights
  • Daytime running lights
  • LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
  • LED accent lights under passenger slideout rooms

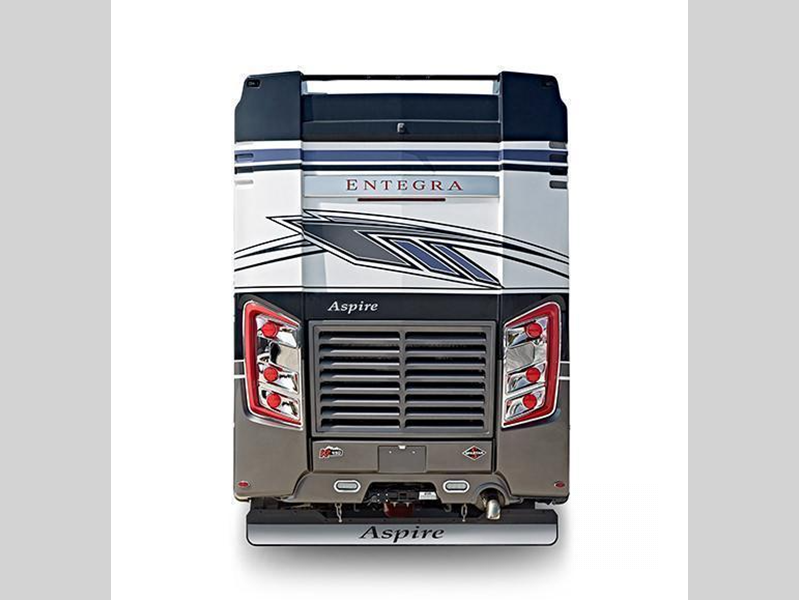

  • Mudflap with chrome “Aspire” nameplate
  • Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
  • Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
  • Winegard® Rayzar Z1 TV antenna
  • Winegard® WiFiRanger™ Wi-Fi extender
  • Heated exterior utility center with 5 in. LED SeeLeveL™ tank monitoring panel
  • Push-button, power-unlatching baggage doors with LED indicator light; Slideout basement storage tray

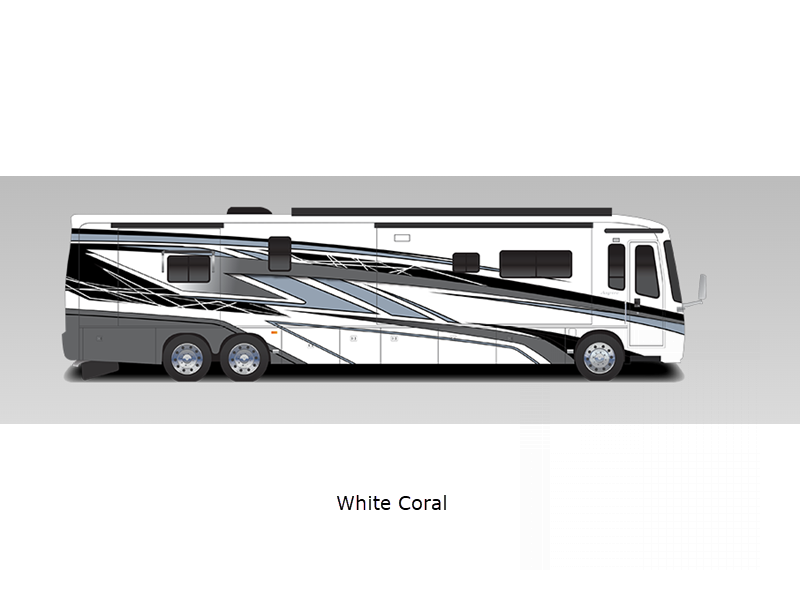

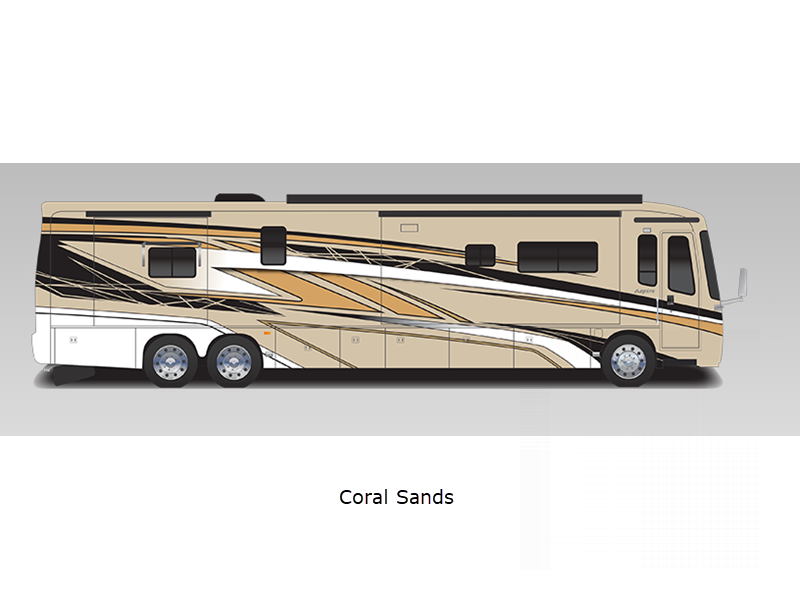

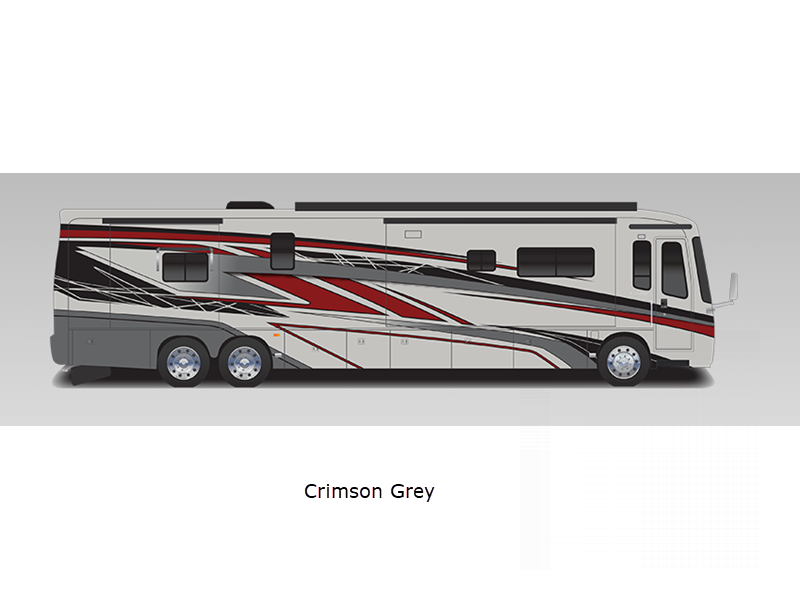

  • Sikkens custom full-body paint
  • Removable screen on entry door

Cockpit

  • Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging
  • Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation
  • Ramco 360° HD digital camera system
  • Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
  • 4.3 in. infotainment control touchscreen in passenger console
  • E-Z Steer™ adjustable power steering assist
  • Steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
  • Manual tilt and telescoping steering column
  • JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer
  • All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system

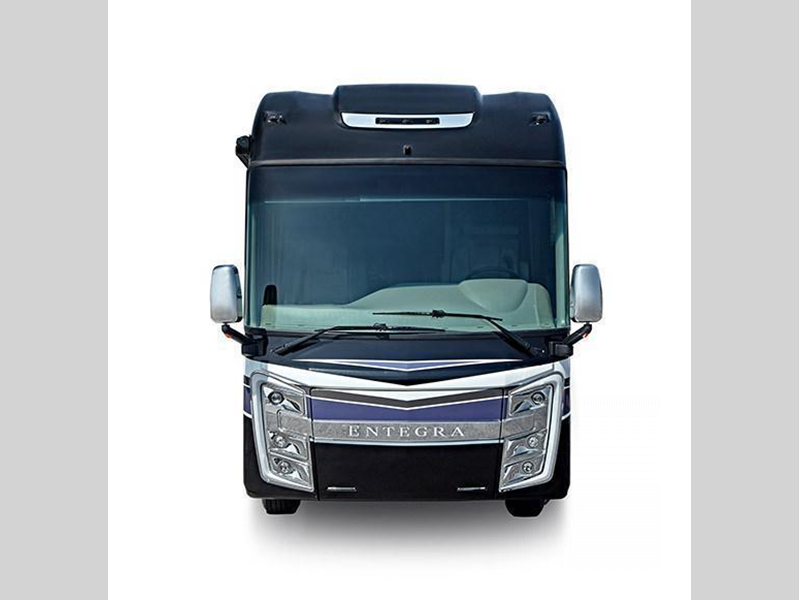

  • Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
  • Leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions
  • Powered flush stepwell cover
  • Powered adjustable brake and accelerator pedals
  • Powered front sun visors and privacy shades

Interior

  • 32" Samsung® LED 1080P Smart TV in front overhead
  • Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
  • 50” Samsung® 4K UHD Smart TV
  • Bose® sound bar with subwoofer and universal remote control
  • Sony® Blu-ray™ player
  • Premium leather Crown Compass furniture
  • Hand-laid porcelain tiled floors
  • LED interior lighting
  • Decorative ceiling feature with integrated accent lighting
  • Manual solar day shades and blackout night shades
  • Central vacuum system
  • Aire-Secure™ travel locks for all pocket doors
  • Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)
  • Separate washer and dryer

Kitchen

  • Window with push out lever operation and screen
  • Stainless steel residential refrigerator with ice maker and water dispenser
  • Induction cooktop with matching wood cover
  • 1.9-cu. ft. convection microwave oven
  • Fisher & Paykel dishwasher
  • Solid-surface countertops with dimmable LED accent lighting
  • Stainless steel sink
  • Maxxair® power vent exhaust fan with intake and touch screen control
  • Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44D and 44R)
  • Slide-out storage tray(s) in overhead cabinet

Bedroom

  • King-size gel memory-foam mattress
  • 32" Samsung® LED 1080P Smart TV
  • Bose® sound bar with universal remote control
  • Sony® Blu-ray™ player
  • Ceiling fan
  • Nightstands with solid-surface tops

Bathroom

  • Solid-surface countertops with dimmable LED accent lighting
  • Integrated sink
  • Textured porcelain tile shower with skylight and clear glass shower door
  • Teakwood shower seat
  • Fixed shower head and separate hand-held spray wand
  • Aqua View SHOWERMI$ER™ water saving system
  • Thetford® macerator toilet in main bath (N/A 44Z) ; Thetford Aqua-Magic toilet with foot flush in mid bath (44B, 40P)
  • Maxxair® power exhaust fan with intake

Safety

  • Porch light and motion sensor security lights
  • Carbon monoxide detector
  • Security system with glass shatter sensors
  • Smoke alarm
  • Security safe

Options

  • Canadian standards (includes Canadian Shaw satellite)
  • Sofa ILO power theater seating (40P, 44D, 44W only)
  • Power theater seating ILO hide-a-bed (44R only)
  • 100 in. hide-a-bed sofa ILO 100 in. power reclining sofa (44B, 44Z only)
  • Fireplace/entertainment center/work station ILO sofa (44D, 44W only)
  • (2) additional AGM batteries (N/A 40P)
  • Winegard® In-motion satellite dome
  • Winegard TRAV'LER satellite dish- Dish Network
  • Booth Dinette

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Manu-Facts:

Entegra Coach

In the spring of 2008, Entegra Coach became a member of the Jayco family of companies. Ever since, we've taken great pride in the details—and each luxury motorhome we build embodies that principle.



We started building luxury motorcoaches one at a time—with a superior foundation, unrelenting attention to detail and old-world craftsmanship, unmatched engineering innovation, rock-solid construction and a ride that's as smooth and quiet as it is invigorating and well-appointed.



In 2018, our pursuit of the superior luxury motorhome expanded beyond diesel Class A coaches to gas Class As and Class Cs. By building on experience and listening to customers, we're making the Entegra Coach luxury experience a reality for more travelers than ever. As always, we back each coach with personalized customer service and coverage that is unmatched in the industry.



So from the moment you drive off the lot, you're not only an owner—you're a member of the family

Sign up for Exclusive RV Specials
