Storyteller Overland Motor Home Class B - Diesel RVs For Sale
The Storyteller Overland offers 4X4 and AWD Class B diesel motorhomes and an AWD Class B gas motorhome, allowing you to choose the best fit for an epic adventure that is both comfortable, safe and memorable!
The MODE 4X4 vans are built on a Mercedes-Benz Sprinter with a turbo diesel engine, and the MODE AWD vans are also built on a Mercedes-Benz Sprinter but with a 2500 4-cylender diesel high output AWD. You will find an inch in extra headroom, length, and width inside the Transit chassis when compared to the Sprinter. The uncluttered design makes it easy to accommodate many tasks, and the flexible living space has a dinette table, a Dreamweaver bed/convertible work surface, a GrooveLounge two-seater convertible sofa bed, a portable induction cooktop, and portable cassette toilet for convenience. The Halo Shower system and outside shower will keep you clean, and the garage area will allow you to load up the back with groceries, travel gear, or luggage.
Choose a Storyteller Overland Class B diesel or gas motorhome to enjoy the ease of a thoughtful, streamlined, intuitive design that gives you effortless choices to shift into whatever MODE you are ready for!
-
Storyteller Overland Beast MODE 4x4
Storyteller Overland Class B diesel van Beast MODE 4x4 highlights: 4x4 Package, ... more about Storyteller Overland Beast MODE 4x4
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Length 21 ft Ext Width 7 ft 6 in Ext Height 10 ft 3 in Int Height 6 ft 3 in Exterior Color Blue Grey Hitch Weight 500 lbs GVWR 9050 lbs Fresh Water Capacity 21 gals Grey Water Capacity 24 gals Black Water Capacity 2.6 gals Tire Size 275/70/17 Fuel Type Diesel Engine 3.0L V6 Turbo Diesel Chassis Mercedes-Benz Sprinter 4x4 Fuel Capacity 24.5 gals Wheelbase 144 in Refrigerator Type Dual Voltage w/Freezer Cooktop Burners 1 Number of Awnings 1 Water Heater Type Continuous AC BTU 13500 btu Awning Info 10' Powered with Dimmable LED Lights Shower Type Wet/Bath Shower Electrical Service 30 amp -
Storyteller Overland Beast MODE AWD
Storyteller Overland Class B diesel van Beast MODE AWD highlights: Agile Off ... more about Storyteller Overland Beast MODE AWD
Featured Beast MODE AWD
Specifications
Sleeps 3 Length 21 ft Ext Width 7 ft 6 in Ext Height 10 ft 3 in Int Height 6 ft 3 in Exterior Color Blue Grey, Stone Grey GVWR 9050 lbs Fresh Water Capacity 21 gals Grey Water Capacity 24 gals Fuel Type Diesel Engine 2500 4-Cylender High Output AWD Chassis Mercedes-Benz Sprinter Fuel Capacity 24.5 gals Wheelbase 144 in Refrigerator Type Dual Voltage w/ Freezer Cooktop Burners 1 Number of Awnings 1 Water Heater Type Continuous Awning Info 10' Power with Dimmable LED Shower Type Wet/Bath Shower Electrical Service 30 amp -
Storyteller Overland Classic MODE AWD
Storyteller Overland Class B diesel van Classic MODE AWD highlights: ... more about Storyteller Overland Classic MODE AWD
Featured Classic MODE AWD
Specifications
Slides 3 Length 20 ft Ext Width 6 ft 7 in Ext Height 10 ft Int Height 6 ft 3 in GVWR 9050 lbs Fresh Water Capacity 21 gals Grey Water Capacity 24 gals Fuel Type Diesel Engine 2500 4-Cylender High Output AWD Chassis Mercedes-Benz Sprinter Fuel Capacity 24.5 gals Wheelbase 144 in Refrigerator Type Dual Voltage w/ Freezer Cooktop Burners 1 Number of Awnings 1 Water Heater Type Continuous Awning Info 10' Power with Dimmable LED Shower Type Wet/Bath Shower Electrical Service 30 amp -
Storyteller Overland MODE 4x4
Storyteller Overland Class B diesel van Classic MODE 4x4 highlights: Four-Wheel ... more about Storyteller Overland MODE 4x4
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Length 20 ft Ext Width 7 ft 6 in Ext Height 10 ft Int Height 6 ft 3 in Exterior Color Arctic White, Pebble Grey Hitch Weight 500 lbs GVWR 9050 lbs Fresh Water Capacity 21 gals Grey Water Capacity 24 gals Black Water Capacity 2.6 gals Tire Size 265/60R/18 Fuel Type Diesel Engine 3.0L V6 Turbo Diesel Chassis Mercedes-Benz Sprinter 4x4 Fuel Capacity 24.5 gals Wheelbase 144 in Refrigerator Type Dual Voltage w/Freezer Cooktop Burners 1 Number of Awnings 1 Water Heater Type Continuous AC BTU 13500 btu Awning Info 10' Powered with Dimmable LED Lights Shower Type Wet/Bath Shower Electrical Service 30 amp -
Storyteller Overland Stealth MODE 4x4
Storyteller Overland Class B diesel van Stealth MODE 4x4 highlights: 12kWh ... more about Storyteller Overland Stealth MODE 4x4
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Length 20 ft Ext Width 7 ft 6 in Ext Height 10 ft Int Height 6 ft 3 in Exterior Color Selenite Grey, Blue Grey Hitch Weight 500 lbs GVWR 9050 lbs Fresh Water Capacity 21 gals Grey Water Capacity 24 gals Black Water Capacity 2.6 gals Tire Size 265/60R/18 Fuel Type Diesel Engine 3.0L V6 Turbo Diesel Chassis Mercedes-Benz Sprinter 4x4 Fuel Capacity 24.5 gals Wheelbase 144 in Refrigerator Type Dual Voltage w/Freezer Cooktop Burners 1 Number of Awnings 1 Water Heater Type Continuous Awning Info 10' Powered with Dimmable LED Lights Shower Type Wet/Bath Shower Electrical Service 30 amp -
Storyteller Overland Stealth MODE AWD
Storyteller Overland Class B diesel van Stealth MODE AWD highlights: NVADER Rear ... more about Storyteller Overland Stealth MODE AWD
Specifications
Sleeps 3 Length 20 ft Ext Width 6 ft 7 in Ext Height 10 ft Int Height 6 ft 3 in Exterior Color Grey Metallic GVWR 9050 lbs Fresh Water Capacity 21 gals Grey Water Capacity 24 gals Fuel Type Diesel Engine 2500 4-Cylender High Output AWD Chassis Mercedes-Benz Sprinter Fuel Capacity 24.5 gals Wheelbase 144 in Refrigerator Type Dual Voltage w/ Freezer Cooktop Burners 1 Number of Awnings 1 Water Heater Type Continuous Awning Info 10' Power with Dimmable LED Shower Type Wet/Bath Shower Electrical Service 30 amp
Storyteller Overland Features:
Standard Features (2023)
Mercedes-Benz Sprinter
- 144” Wheelbase, High Roof, 2500
- 3.0L Turbo Diesel V6 (4x4)
- 4×4 Package, Low and High Range (4x4)
- LED High-Performance Headlamps
- Fog Lamp w/ Cornering Light Function
- Heated, Swiveling Driver and Co-Driver Seats
- Rain Sensor (4x4)
- Rear Glass Tint and Defrost
- Heated, Electrically Folding Mirrors
- MBUX Multimedia System w/10.25” Touchscreen (4x4)
- MBUX Multimedia System w/10.25” Touchscreen Parking Package w/ 360° Cameras (AWD)
- Parking Package w/ 360° Cameras (4x4)
- Satellite Radio
- Intelligent Navigation
- Smartphone Wireless Charging
- Active Lane Keeping Assist
- Active Brake Assist
- Attention and Blind Spot Assist
- Traffic Sign Assist
- Assist Handle, B-Pillar
Ford Transit 3.5L V6 PFDI Engine
- Swiveling Driver and Co-Driver Seats
- Sync 8" Multi-Function Display
- 6-Speaker Sound System w/ Bluetooth, Dual USB ports Satellite Radio
- Engine Block Heater
- Extended Fuel Tank, 31 gal
- Vehicle Maintenance Monitor
- Keyless Entry w/Remote Start
- Front Fog Lamps
- Swiveling Driver and Co-Driver Seats
- Assist Handle, B-Pillar
- Sync 4 with ADAPTIVE CRUISE CONTROL
- 360 degree cameras
- HD trailer tow package
Ford Transit 3.5L EcoBoost
- Swiveling Driver and Co-Driver Seats
- Sync 8" Multi-Function Display
- 6-Speaker Sound System w/ Bluetooth, Dual USB ports Satellite Radio
- Engine Block Heater
- Extended Fuel Tank, 31 gal
- Vehicle Maintenance Monitor
- Keyless Entry w/Remote Start
- Front Fog Lamps
- Swiveling Driver and Co-Driver Seats
- Assist Handle, B-Pillar

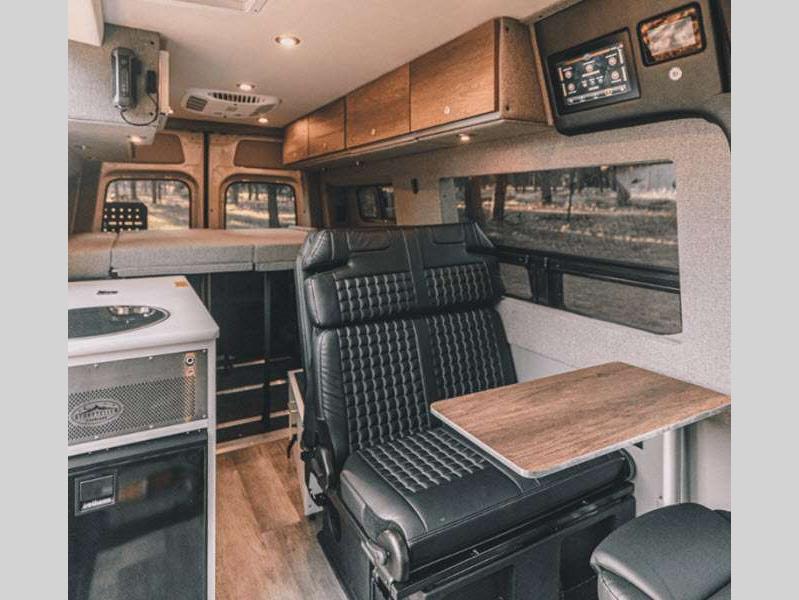

Interior
- Dreamweaver™ Bed/Convertible Work Surface
- GrooveLounge™ 2-Seater Convertible Sofa Bed
- MODE COM 11? Full Color Touchscreen Control System
- Removable Upper Cabinetry
- High Powered Ceiling Intake/Exhaust Fan
- Dimmable LED Ceiling Lights
- Dimmable LED Under Cabinet Lights
- Dimmable LED Cargo Area Lights
- Cabin Air Conditioner
- Diesel Fired Heating System
- Water Control System
- (8) 110V Outlets
- (6) USB Ports
- (3) 12V Outlets
- Garage Cargo Area w/ L-Track
- Side and Rear Door Bug Screens
- Privacy Shades for All Windows
- Portable Bluetooth Speaker
- Sheep’s Wool Insulation
Exterior
- Roof Rack w/ Sonic Wedge Wind Deflector
- Tubular Side Mount Ladder
- Lower Solar Port
- Powered Awning w/Dimmable LEDs
- Running Boards
- 21 gal Fresh Water Tank (in Cabin)
- 24 gal Grey Water Tank w/Heating Loop
- City/Fresh Water Connection
- Heavy Duty Shore Power Inlet
- (4) 110V Outlets
Energy System
- Volta Touch Screen Display
- 3200W inverter, 6400W peak
- Intelligent Power Distribution Module (Managed by MODE COM)
- High Output Auxiliary Alternator
- 90W Solar Panel, expandable up to 600W
- 30A Power Cord
Safety
- Smoke / CO Detector
- Fire Extinguisher
- Ground Fault Circuit Interrupter
Galley
- Stainless Steel Sink w/ Folding Faucet
- Exterior Fold Down Table
- Dual Voltage Refrigerator/Freezer
- Stainless Steel Microwave
- Portable Induction Cooktop
Bath
- Halo Interior Shower™ System
- FlexSpace™ Concealed Shower Pan
- Exterior Shower
- Portable Toilet
- Gasoline/Diesel Fired Water Heating System
- Hot Water Recirculation System
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
